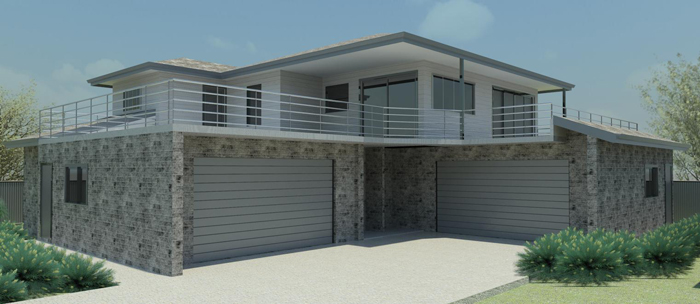

The Lachlan

Lachlan House Plan

Surface Area

  • Unit A: 1480.03m2
  • Unit B: 157.01m2
  • Garage Unit A: 45.95m2
  • Garage Unit B: 47.54m2
  • Suits: x24m2 lot width
  • 2
  • 3
  • 2

Description

Build the ideal setup for couples or retirees. The Lachlan duplex house and floor concept plan offers easy living tastefully designed as two (2) single level duplex units each boasting open plan living and three (3) generous bedrooms.

Each unit has a master suite with walk-in-wardrobe (WIW) and ensuite as well as a linen cupboard and laundry. The two double garages include a side courtyard to store bins.

The upper unit opens out onto generous balcony terraces for outdoor living and entertaining whilst the lower unit enjoys access to the yard.

Remember to confirm that your local Council will allow this type of residential development on your site.

FLOOR
PLAN

BUY FLOOR PLAN ONLY - $49 - Available world wide
  • Unlimited license
  • Editable files
  • Configure the plan to
     your local needs

Full details below*

DEVELOPMENT APPLICATION

PLAN TO FIT YOUR SITE - $1800 + GST - Australia Only
  • Site plan
  • Floor plan
  • Elevations
  • Section plan

Full details below*

CONSTRUCTION CERTIFICATE

Under construction certificate - $1000 + GST - Australia Only
  • Produce plans required for a Construction Certificate Application
  • Produce a building specification for your job

Full details below*

Features

  • 2 single duplex units, one above the other
  • 3 generous bedrooms with BIR
  • Main with WIW and ensuite
  • Open plan kitchen, dining and living area
  • Laundry
  • Linen cupboard
  • Double garage with courtyard for bins
  • Access to outdoor areas

FLOOR PLAN

BUY $49 FLOOR PLAN

BUY NOW

BUY FLOOR PLAN ONLY
(*Worldwide)

You must check what is required with your local planning Authority to ensure your concept plan complies with their policies. As the Purchaser, you have the right to alter the plans to suit your needs and/or your Local Council Requirements.

UNDER DEVELOPMENT APPLICATION - $1800

BUY NOW

UNDER DEVELOPMENT APPLICATION
(*Australia Only)

Take the stress out of building your dream home

Building your dream home in Australia is a lot more complicated than simply finding the home plan of your dreams.

We will help you from concept to completion. For an extra $1800.00 + GST, we will not only supply you with unlimited use and development application drawings, we will also provide you with all the assistance you need to get through the determination/approval process.

We will also assist you in obtaining all items mentioned below to allow a Development Application to be lodged for authorities to determine

What You need to do:
  • Provide a registered land survey of your property you are building on.
What we will do:
  • produce the plan to fit with your site
  • produce all the plans required for approval  of the development application from your local Council
    • Site plan
    • Floor plan
    • Elevations
    • Section plan
For additional costs, we can do the following too:
  • Assist you in obtaining all reports you may need including
    • Engineer's Reports
    • Energy "Basix" Reports
    • Arborist Reports
    • Geotechnical Reports
    • Building Code Compliance Reports
    • Town Planning Reports
  • Assit in producing the required standard Authorities application forms and documents required for lodgement of your application.
  • Help you find the right builder for the job

UNDER CONSTRUCTION CERTIFICATE - $1000

BUY NOW

UNDER CONSTRUCTION CERTIFICATE APPLICATION
(*Australia Only)

Take the stress out of building your dream home

a

Building your dream home in Australia is a lot more complicated than simply finding the home plan of your dreams.

We will help you from concept to completion. For an extra $1000.00 + GST, we will supply you with unlimited use and full drafting working drawings, we will also provide you with all the assistance you need to get through the determination/approval process.

We will also assist you in obtaining all items mentioned below to assist you in your Application for a Construction Certificate.

This means we will:

  • Produce plans required for a Construction Certificate Application
  • Produce a building specification for your job

For additional costs, we can do the following too:

  • Assist you in obtaining all reports you may need including
    • Engineer's Reports
    • Energy "Basix" Reports
    • Arborist Reports
    • Geotechnical Reports
    • Building Code Compliance Reports
    • Town Planning Reports
  • Assit in producing the required standard Authorities application forms and documents required for lodgement of your application.
  • Help you find the right builder for the job
